Fiberglass Hexcel Style 7500 60″

Fiberglass Fabric Hexcel Style 7500
60″ Wide
10 Ounce Per Square Yard
Plain Weave Volan Treated For Epoxy Compatibility

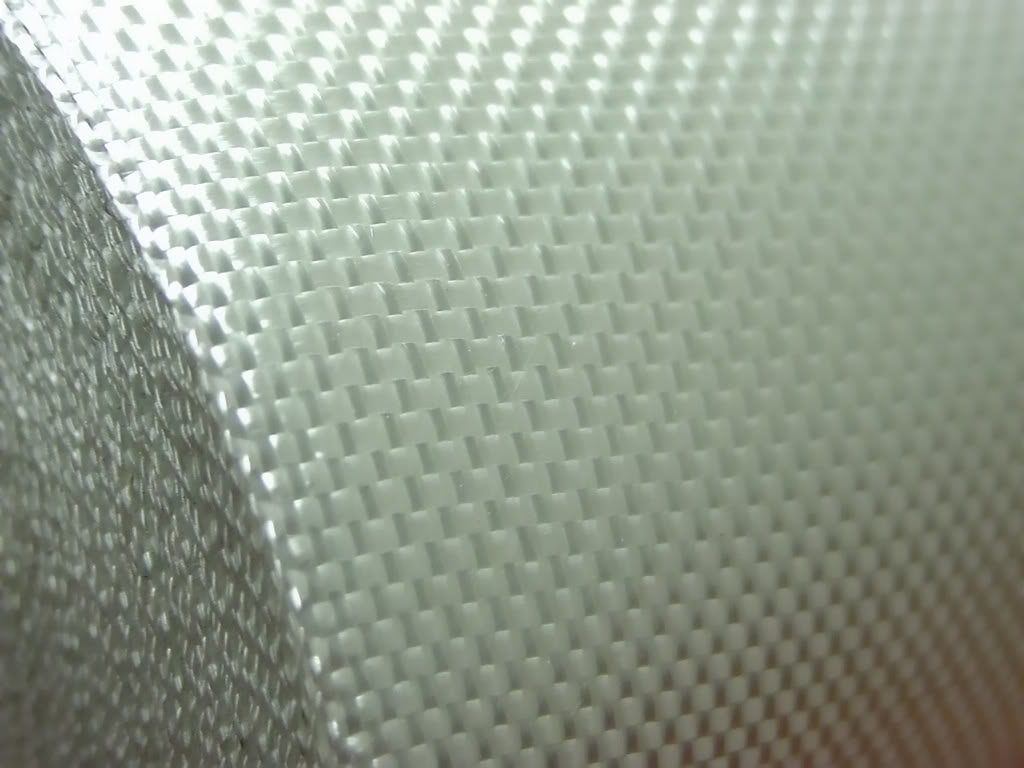

fiberglass32inch2

For ordering and inquiries please call 877-403-8008.
Or visit our eBay Store, PolymerProducts.

Available by the Yard


Description

Use this fabric for structural strength and general reinforcement. Use this fiberglass cloth when high strength parts are desired. It is ideal for construction, composites reinforcement, mold making, aircraft and auto parts tooling, marine and other composite lightweight applications.

Volan Finish is also known as Chrome Finish due to presence of chromium applied to glass fibers. The Volan solution finish is applied unto fiberglass fabric during the manufacturing process to give good bonding to epoxy, vinyl ester and polyester resins. If used with clear resins, volan cloth will appear to have a slight greenish tint; Volan laminates tend to dent rather than crack making it an ideal fabric for high impact applications.


FABRIC DATA STYLE 7500 FIBERGLASS

Type of yarns Warp Yarn ECG 37-1/2 Fill Yarn ECG 37-1/2
Fabric Weight 9.6 (oz/yd2) OSY 325 (g/m2)
Weave Style Plain Balanced

 CONSTRUCTION

Warp Count 16 yarns/inch (VERTICAL WEAVE)
Fill Count 14 yarns/inch (HORIZONTAL WEAVE)
Fabric Thickness 11.0 (mils) 0.28 (mm)
Breaking Strength 300 (lbf/in) 250 (lbf/in)
