Medium Set Casting Resin
Opaque Black Insulating Resin System For
Electrical Insulating And Electronic Circuitry
Or
Permanent Opaque Black Masking Compound For Proprietary Electronics
Circuit Board Conformal Coating
Electrical Potting Compound
Imbedding Or Masking Compound
Waterproof Low To High Voltage Circuits
For ordering and inquiries please call 877-403-8008.
Or visit our eBay Store.
PolymerProducts on eBay
Available Kit Sizes:
Description

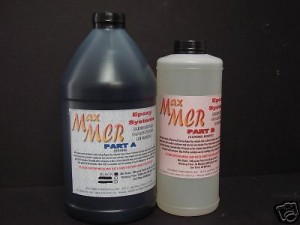

MAX MCR BLACK A/B is an unfilled medium working time casting resin that offers a good balance of performance and cost, making it an excellent resin for electrical insulating applications. It cures to a hard but tough compound that is suitable for small to medium parts without excessive exothermic heat generation (up to 1 pound). It has a 30 minute working time when mixed up to 200 gram mass.
MAX MCR BLACK A/B is low in viscosity and offers a very high gloss finish blemish free surface.
The 2 to 1 mix ratio offers ease of use and easily poured in place or can be adapted for mix meter equipment.
It is suitable for silicone, polyurethane, steel, and wood molds for casting applications.
MAX MCR A/B can also be utilized in many different applications where epoxy resins are typically employed.
It bonds very well to wood, metal, concrete and other composite and plastic substrates.
Other Uses:
Electronic Potting and Encapsulating Compound
Structural Adhesive
Protective Coating
Fiber Glass/Carbon Impregnating And Laminating Resin
Base Binder Resin
Physical and Mechanical Properties
| Form And Color | Black Liquid , Self Leveling Other Colors Available |
| Viscosity Part A | 2,500 cPs |
| Viscosity Part B | 750 cPs |
| Mixed Viscosity | 2800 cPs (after induction time) |
| Mix Ratio By Weight | (2:1) 100 Parts A to 50 Parts B |
| Mix Ratio By Volume | (2:1)100 Parts A to 50 Parts B |
| Mixed Density | 1.10 g/cc |
| Working Time | 30-45 minutes (400 gram mass) |
| Gel Time | 60 minutes |
| Peak Exotherm | 280°F max (400 gram mass) |
| Demold Time | 24 hours room temperature |
| Accelerated Cure | 2 Hours @ 75°F plus 30 minutes at 200°F |
| Shore Hardness | 70- 75 Shore D |
| Shrinkage: | <0.50 % |
| Compressive Strength | 13,800 psi |
| Tensile Strength | 9,900 psi |
| Tensile Elongation | 4% |
| Heat Distortion Temperature | 190°F |
ELECTRICAL AND THERMAL CONDUCTIVITY PROPERTIES
| Volume Resistivity | 4.7 X 1013 Ohms-Cm |
| Dielectric Strength | 510 Volts/Mil 60 Cycles |
| Dielectric Constant | 4.0 (10 kHz) |
| Dissipation Factor | 0.014 (10 kHz) |
| Thermal Conductivity (Unfilled) 40°-45°C | 0.25 W/mK |
