HEXCEL STYLE 1584
8 Harness Satin Weave
26 ounces per square yard
38+ Inches Wide
For ordering and inquiries please call 877-403-8008.
Or visit our eBay Store, PolymerProducts.
Available Kit Sizes:
3 Yards
Description
The 8 harness satin weave is more pliable than the plain weave and is easier to conform to curved surfaces typical in reinforced plastics. In this weave pattern there is a three by one interfacing where a filling yarn floats over three warp yarns and under one. Another typical application of this fabric is used as the a top and bottom layer of a heavy woven fabric to help reduce the heavy weave patterns on the fascia of the laminate.
This fabric style is over three times the density (thickness and weight of the HEXCEL 7781 style fabric but exhibits similar pliability, saving time by just using less number of layers and improving mechanical performance.
This fabric offers ease of use for fabricating medium to large tooling, molds, and general reinforcements. It is very pliable and easy to lay-up compared to standard woven roving fiberglass. The 8 harness satin weave allows excellent minimal consolidation pressure when applied unto sharp angles or contoured surface without wrinkling or weave distortions.
E-GLASS
- 538 Volan type surface treatment
- Excellent for marine applications
- Mold making and tooling
- Reinforcing and general composite fabrication
- Tooling boards
Technical Data
HEXCEL 1584 DATA
8 HARNESS SATIN WEAVE FIBERGLASS
| STYLE 1584 | US System | SI Units | ||
| Type of Yarns | Warp Yarn: | ECG 150 4/2 | EC9 33x4x2 | |
| Fill Yarn: | ECG 150 4/2 | EC9 33x4x2 | ||
| Fabric Weight, Dry | 26.00 oz/yd2 | 882 g/m2 | ||
| Weave Style | 8 Harness Satin | |||
| CONSTRUCTION | ||||
| Nominal Construction | Warp Count: | 44/in | 17.32/cm | |
| Fill Count: | 35/in | 13.77/cm | ||

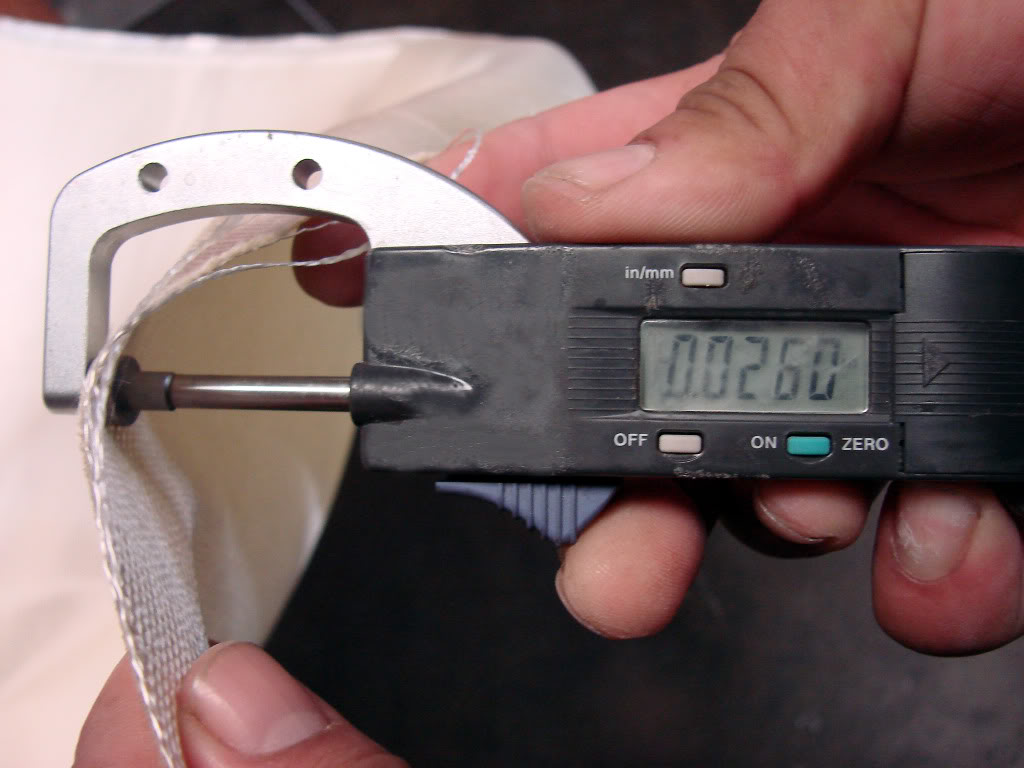

| Fabric Thickness | 24.60 mil | 0.62 mm | ||
| Breaking Strength | Warp | 1000 lbf/in | ||
