MAX BOND Medium Viscosity A/B

Epoxy/Polyamide Epoxy Resin System
Epoxy/Polyamide based resins are one of the best systems to use for applications that will be subject to water immersion and marine environments. It provides excellent resistance to saltwater, acidic and caustic exposure and retains its physical properties even after prolonged water immersion.

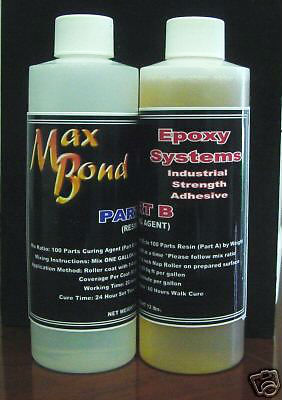

Max Bond Med Vis 32 for website

For ordering and inquiries please call 877-403-8008.
Or visit our eBay Store.
PolymerProducts on eBay

Available Kit Sizes:

32 oz. Kit
2 Gallon Kit


DESCRIPTION

MAX BOND Medium Viscosity A/B is a two-part epoxy based system specially formulated to provide structural bond strength, excellent water resistance for both marine and fresh water and exceptional toughness and impact resistance.

Its long pot life, high performance mechanical properties, and easy application make MAX BOND Medium Viscosity A/B an ideal resin system for hundreds of application where structural strength is required. . MAX BOND Medium Viscosity A/B is 100 % solids and does not contain Ozone Depleting Chemicals (ODC).

MAX BOND Medium Viscosity A/B will cure even in humid and low temperature conditions. It is generally room temperature cured but can be snap cured at elevated temperatures for a short period of time.

MAX BOND Medium Viscosity A/B demonstrates structural bond strengths to a variety of substrates commonly used in composites industry such as, steel, aluminum and soft metals, fiberglass, concrete and ceramic and most plastics.

MAX BOND Medium Viscosity A/B performs well in wide range of service temperature and resists cracking and delamination due to cyclic vibration, thermal expansion and contraction.

MAX BOND A/B Conforms To Hundreds of Aerospace /Military/Naval Materials Specifications
MIL-A-8623 T1
MS-511
MMM-134 Type1 and Type 2
OS-9923A
Boeing BMS-5-29
NASA Requirements For Low Outgassing Properties

Brush, Roller Coat, Trowel Applied
Bonds Steel, Aluminum, Soft Metals, Concrete, Ceramic, Fiberglass, Composites
Excellent Impact Resistance
Excellent Balance of Strength and Flexibility
Excellent Water/Salt Water Resistant for Marine/Aero Applications
Low Shrinkage For Excellent Dimensional Stability
Wide range of service temperature


Viscosity Comparison Chart

MATERIAL VISCOSITY (centipoises)
Water @ 70° F 1-5
Blood or Kerosene 10
Anti-Freeze or Ethylene Glycol 15
Motor Oil SAE 10 or Corn Syrup 50-100
Motor Oil SAE 30 or Maple Syrup 150-200
Motor Oil SAE 40 or Castor Oil 250-500
Motor Oil SAE 60 or Glycerin 1,000-2,000
Corn Syrup or Honey 2,000-3,000
Blackstrap Molasses 5,000-10,000
Hershey Chocolate Syrup 10,000-25,000
Heinz Ketchup or French’s Mustard 50,000-70,000 THIXOTROPIC
Tomato Paste or Peanut Butter 150,000-200,000 THIXOTROPIC
Crisco Shortening or Lard 1,000,000-2,000,000
Caulking Compound 5,000,000-10,000,000
Window Putty 100,000,000

Physical and Mechanical Properties

Density (Mixed) 1.10 g/cc
Form and Color Cured Translucent Straw Color
Shelf Life 12 Months
Viscosity Mixed 15,540 cPs @ 77°F (25ºC)
Mix Ratio Equal parts by weight or by volume
Working Time 120 Minutes @ 77°F(25ºC 200 gram mass)
Peak Exotherm 180 °F to 190°F 200 gram mass
Cure Time 36 Hrs. MinimumUltimate properties achieved after7 Days Cure
Accelerated Cure Schedule 2 Hrs. @ room temperature plus120 min. @ 212°F (100oC)

Samples and specimens were vacuumed amd cured for 24 Hrs. @ room temperature plus 120 min. @ 212°F (100oC)

Hardness 85 to 90 Shore D
Tee-Peel Strength 6.3 Pounds Per Inch Width
Compressive Strength 15,800 psi @ 77°F (25ºC)
Tensile Shear Strength 4,100 psi @ 77°F (25ºC)2,200 psi @ -112°F (-80ºC)1450 psi @ 212°F (100ºC)
Elongation 2.3% Maximum Yield
Tensile Strength 8500 psi (Ultimate @ break)
CHEMICAL RESISTANCE TEST10 Day Soak Test @ 77°F (25°C)3% Salt WaterSulfuric Acid 30%Nitric AcidAmmonia 10%Sodium HydroxideAnti-FreezeMotor Oil SoakSkydrol WEIGHT CHANGE %1.231.93.83.710.00No EffectNo EffectNo Effect
Specimen Cure Cycle And Condition 7 days room temperaturePlus2 hours 250F Post Cure

ELECTRICAL PROPERTIES

Volume Resistivity 2.7 x 1012 Ohms-cm (Ω-cm)
Dielectric Strength 510 Volts/Mil @ 60 Hz.
Dielectric Constant 3.23 @ 60 Hz

SERVICE TEMPERATURE

– 67 ⁰F to 230 ⁰F

or

– 55 ⁰C to 110 ⁰C
